Features & Benefits
- Heated humidifier maintains the humidified air’s temperature as it passes through the tube and into the mask.
- Therapy starts when it detects the three deep breath with Auto Start technology.
- Auto Ramping technology begins with a lower than prescribed pressure setting to ease the user to sleep, and the pressure is ramped up to the prescribed level once the patient is asleep.
- Expiratory Pressure Relief (EPR™) lowers the pressure setting as the user exhales and increases pressure to the prescribed level on the inhale.
- Auto adjusts air pressure on a breath by breath basis, allowing air pressure to vary throughout the night.
- The built-in LCD ambient screen adjusts brightness based on the light in the room and turns off automatically.
- Advanced event detection function identifies central sleep apnea, respiratory effort related arousal and Cheyne-Stokes respiration events to provide insight into the therapy protocol.
- 110-240 AC Power Supply: The DreamSleep™ DS6 APAP AC with 110-240V power supply, US, UK, EU, AU plug etc.
- Auto Air-Leakage Compensation: With auto air-leakage compensation, the CPAP machine can detect the amount of leak in real-time and make automatic adjustments to the air pressure to maintain the desired therapeutic pressure.
Auto Air-Leakage Compensation
With auto air-leakage compensation, the CPAP machine can detect the amount of leak in real-time and make automatic adjustments to the air pressure to maintain the desired therapeutic pressure.
Two Therapy Modes (APAP & CPAP)
VentMed APAP DS6 can be set in either CPAP(manual mode) or APAP (AUTO mode) based on the specific needs.
Integrated Heated Humidifier
Adjustable humidity levels from 1-5, and the humidifier is detachable and easy to clean.
Set Up Guidance

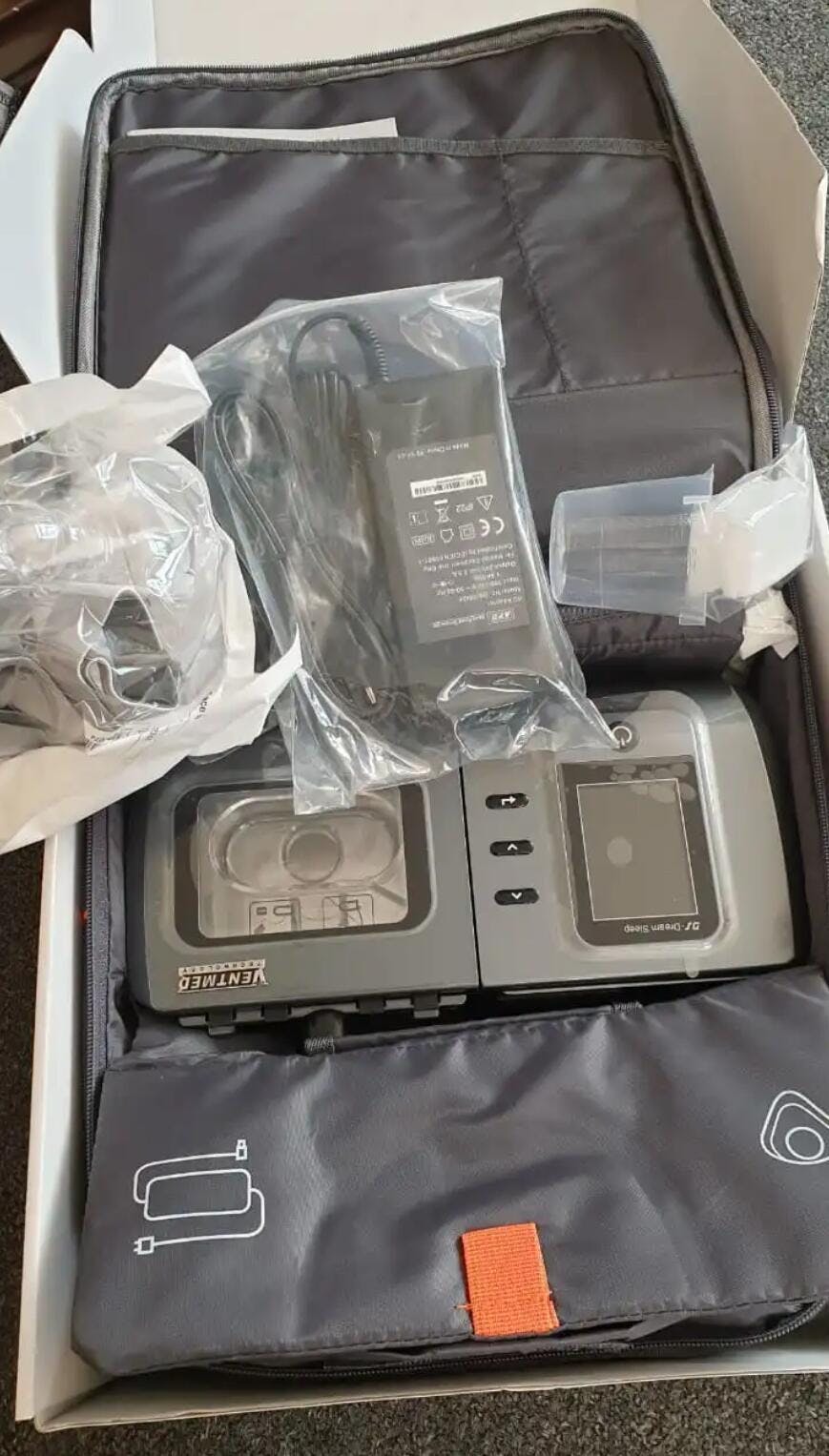

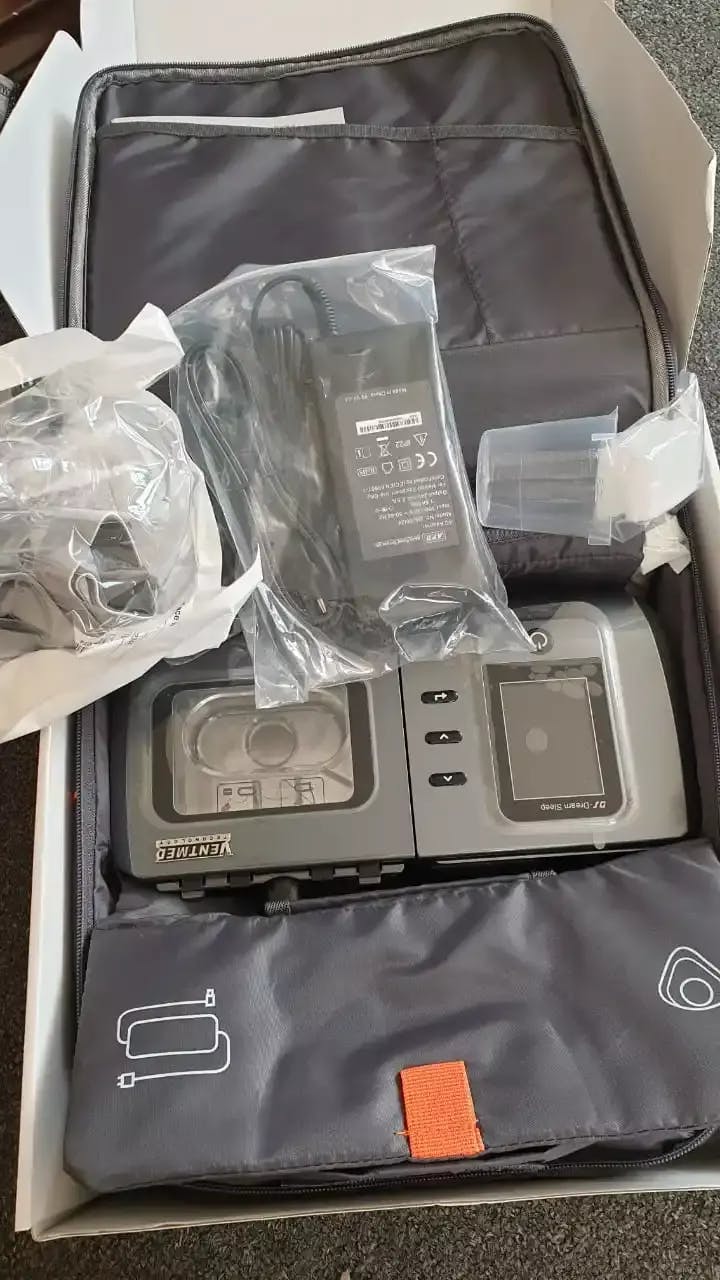

Package Contents

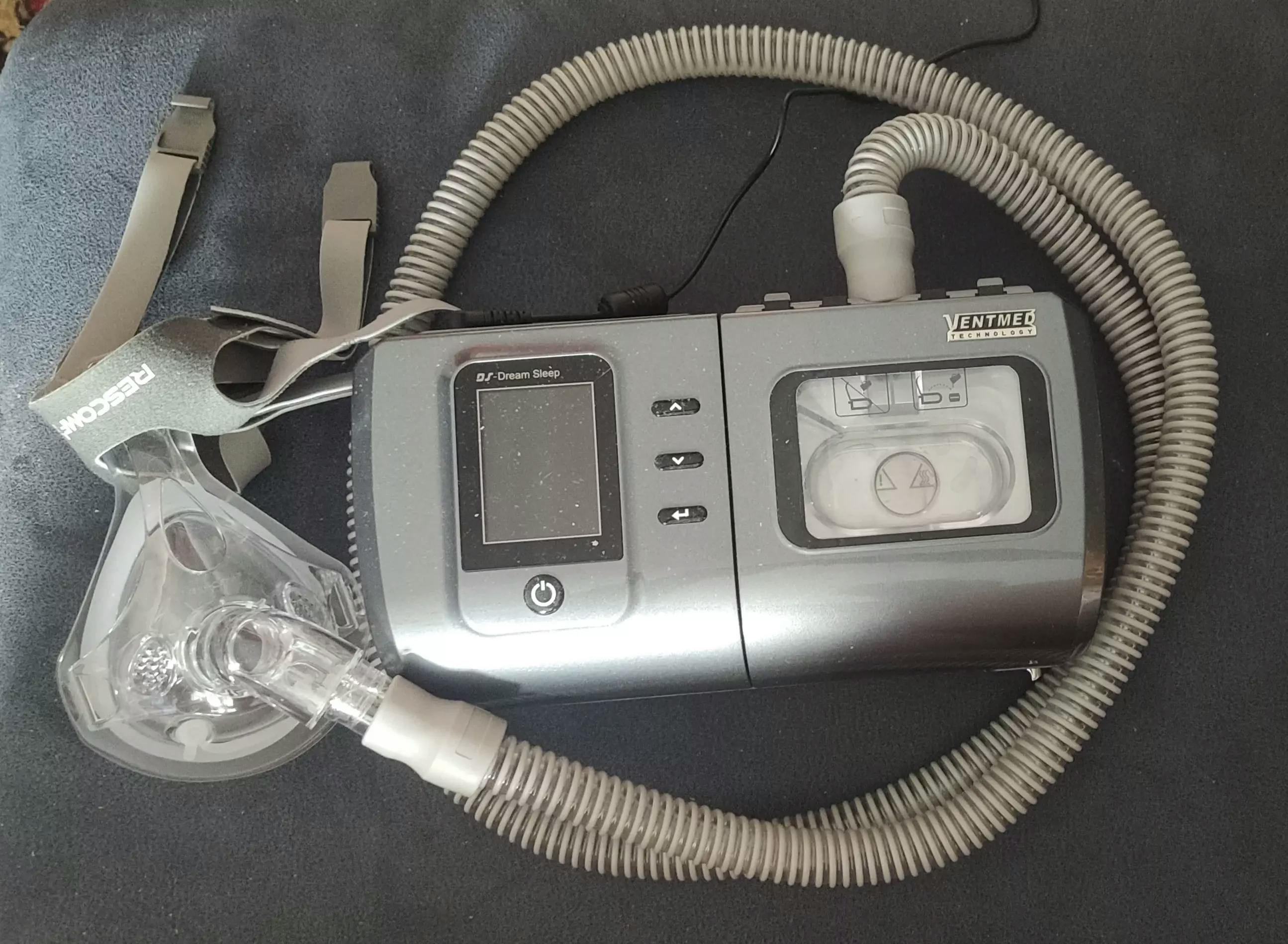

- VentMed APAP Machine DS6
- Nasal Mask(please make a remark if you need a face mask)
- 5 Pieces of Filter Cotton
- CPAP Tubing
- Water Chamber
- SD Card
- Measuring Cup

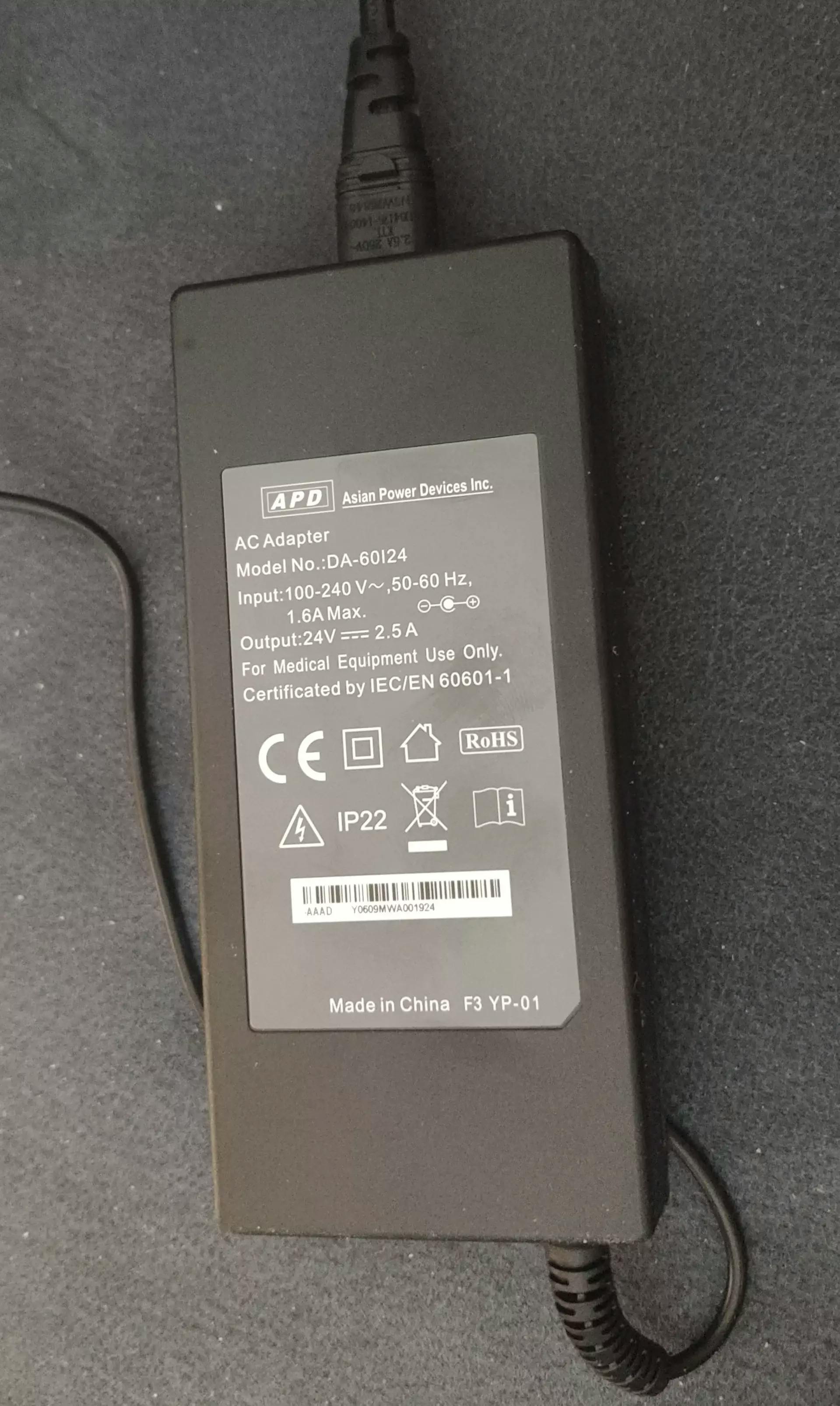

- Power Supply Unit

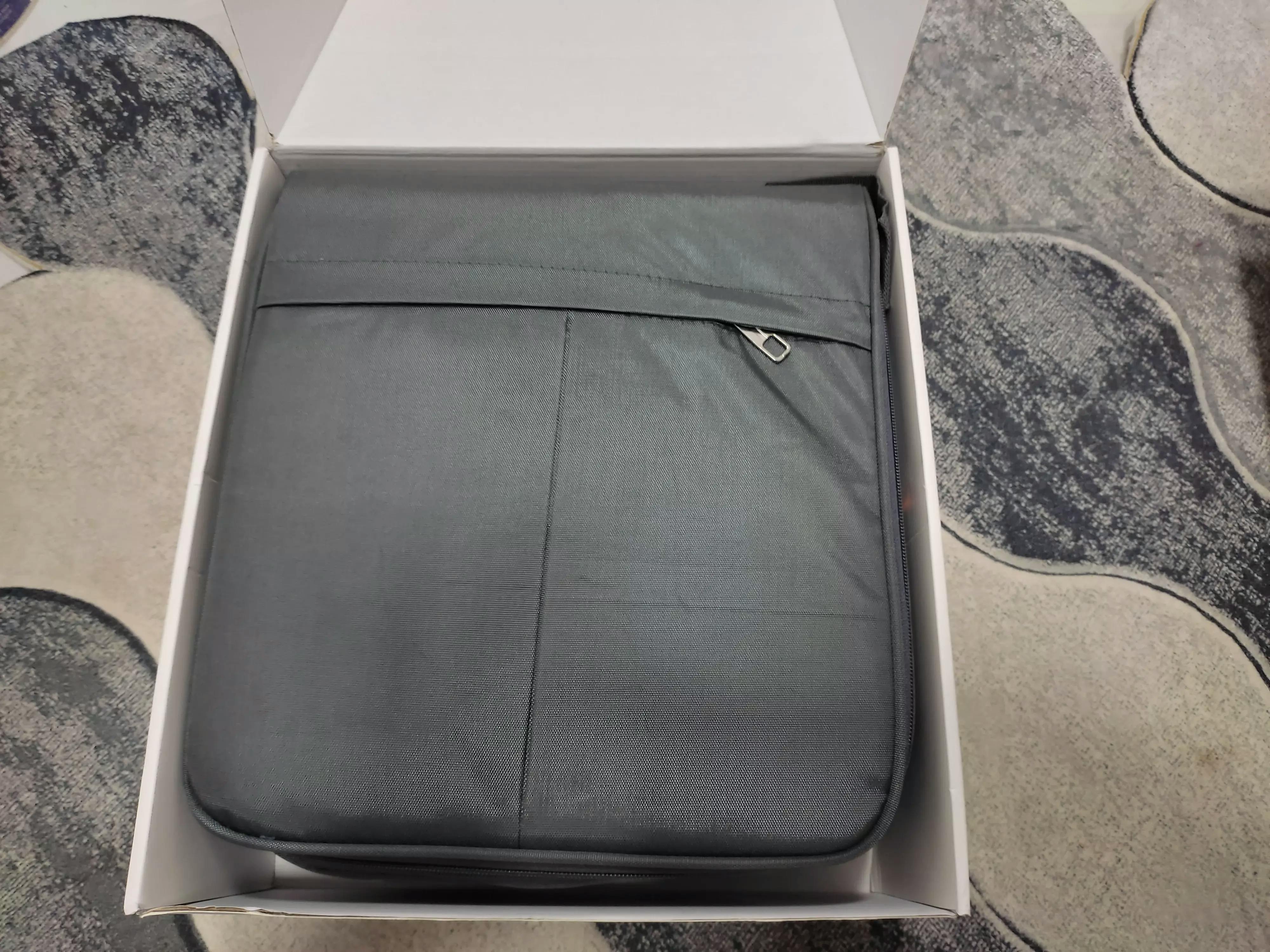

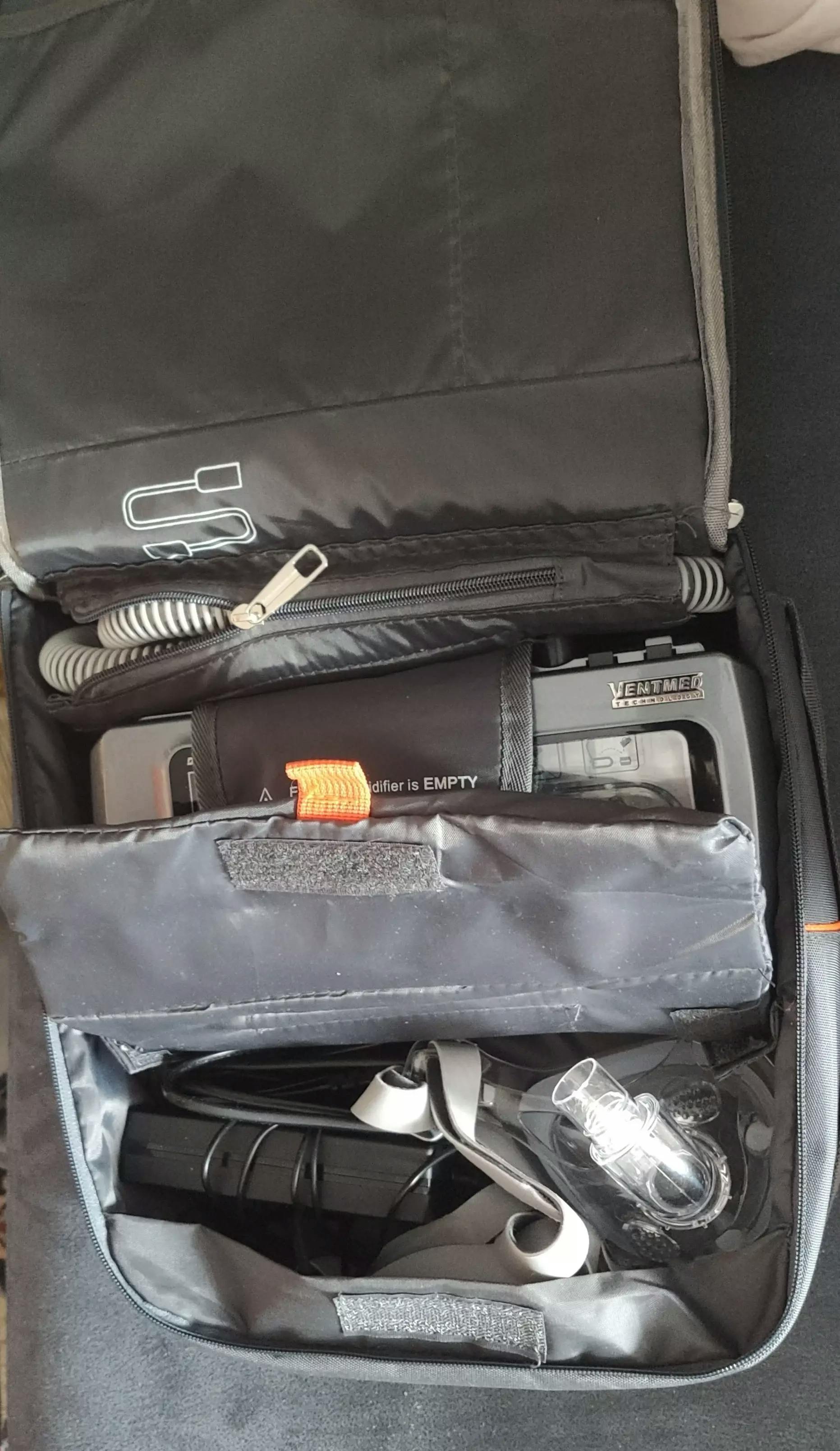

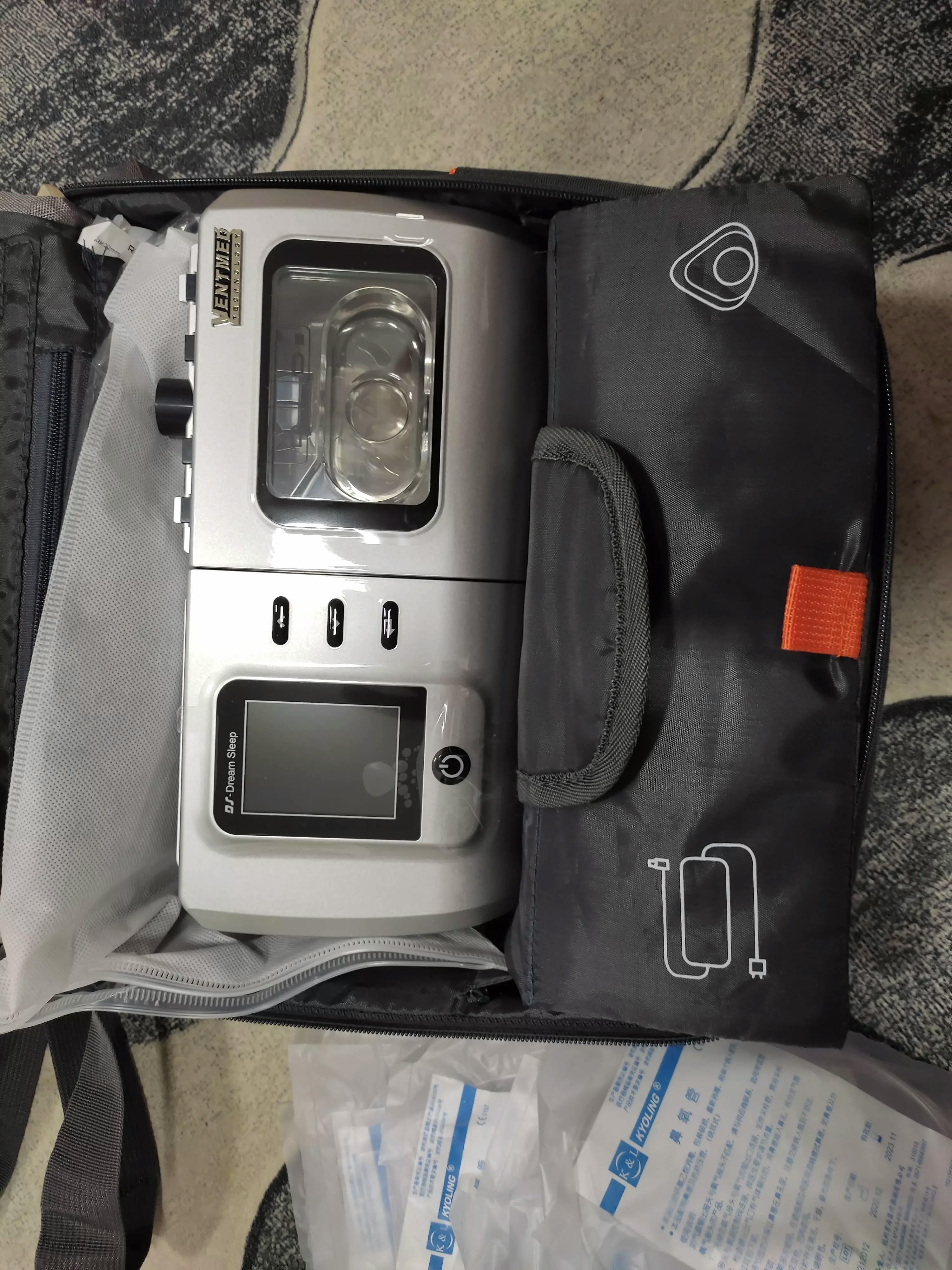

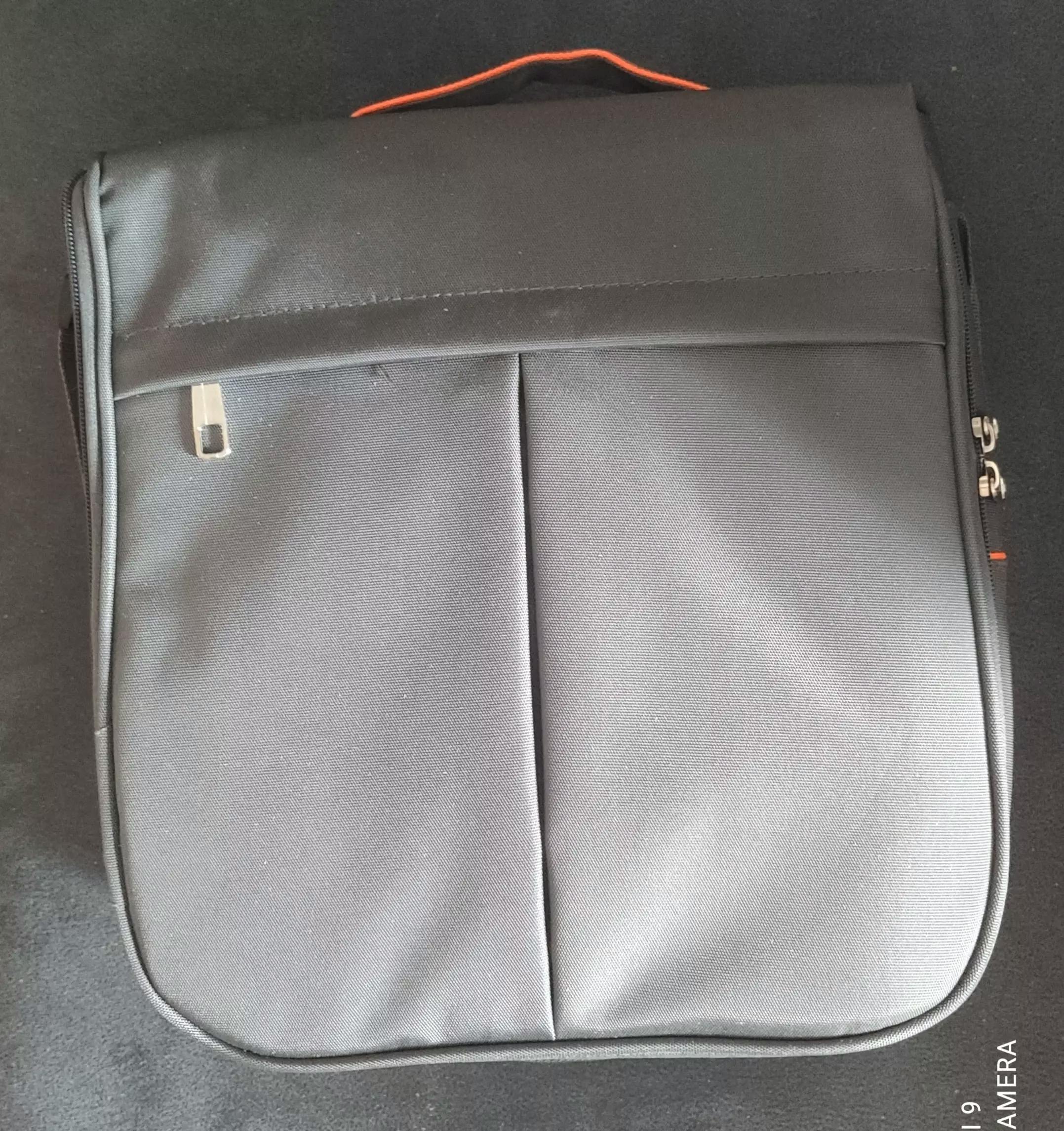

- Carry Package
- User Manual
- Carton Box

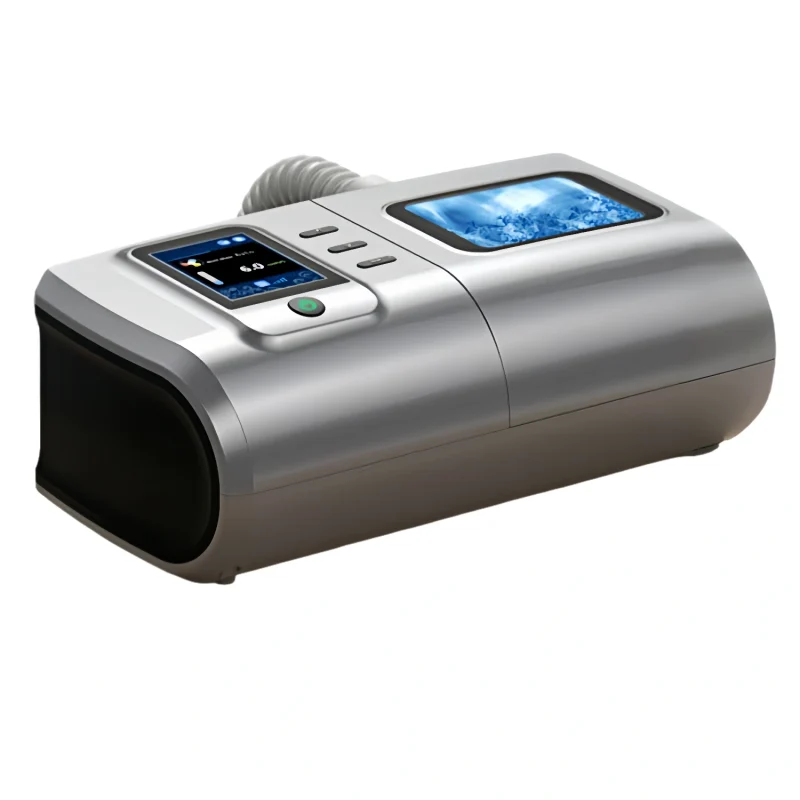

Specifications of DreamSleep APAP
Product Name | VentMed DreamSleep Auto CPAP DS6 |
Material | ABS+plastic |
Color | Silver-Grey |
Work mode | CPAP, AUTO |
Sound | <28db |
Data storage | SD card |
Screen | 2.8 inch color |
Pressure Range | 4-20cmH2O |
Power supply | Input100-240V.50-60Hz, 1-2A; Output+24V,2.5V |
Over-temperature protection | Stop working automatically, buzzle ring 4 times |
Ramp item | 0-60min, 1 min/step |
Auto ON/OFF | Yes |
EPR | Yes, 0-3 level |
Auto-Altitude | Yes |
Leak compensation | Yes |
Awake detection | Yes |
Breath Event detection | Yes |
Auto pressure titration | Yes |
Water Capacity | 200ML max |
Humidifier | Heated Humidifier,0-5 level |
Mask /power Off Alarm | Yes |
Dimensions | 29L*15W*10H(machine); 38.5L*36.5W*16H(carton) |
Weight(With humidifier) | 1.7KG(Net weight); 4KG(Gross weight) |
Work for | OSA |
