Key Features
Advanced Therapy Modes & Comfort
Dual-Channel Auto Pressure Adjustment (4-25 cmH₂O): Automatically adjusts both inhalation and exhalation pressures for optimal, personalized therapy.
Auto ST Mode: Provides intelligent backup respiratory support for patients with specific breathing conditions.
Expiratory Pressure Relief (EPR): Features 3 adjustable levels to enhance comfort by reducing pressure during exhalation.
Auto Ramp (0-60 mins): Gradually increases pressure from a low level to help you fall asleep naturally.
Built-in Heated Humidifier: Includes a 5-level adjustable heated humidifier to prevent dryness and ensure comfortable air quality.
Smart Operation & Data Management
Auto Start/Stop: The therapy begins automatically with your breathing and stops shortly after the mask is removed.
Automatic Leak Compensation: Intelligently maintains effective pressure by compensating for minor mask leaks.
Sleep Report: Easily records detailed sleep reports and enables seamless sharing of therapy data with your doctor via a standard 4G SD card.
Portable & User-Friendly Design
Lightweight & Travel-Ready: Weighing only 1.7kg and including a carry bag, it is perfectly suited for travel.
Universal Voltage (24V-240V): Supports a wide voltage range, making it safe and convenient for global use.
Quiet Operation: Operates at a quiet 26 dB to ensure an undisturbed sleep environment.
Universal Compatibility: Works with a standard tube and is compatible with most masks on the market.
Choose the Right BiPAP Mask

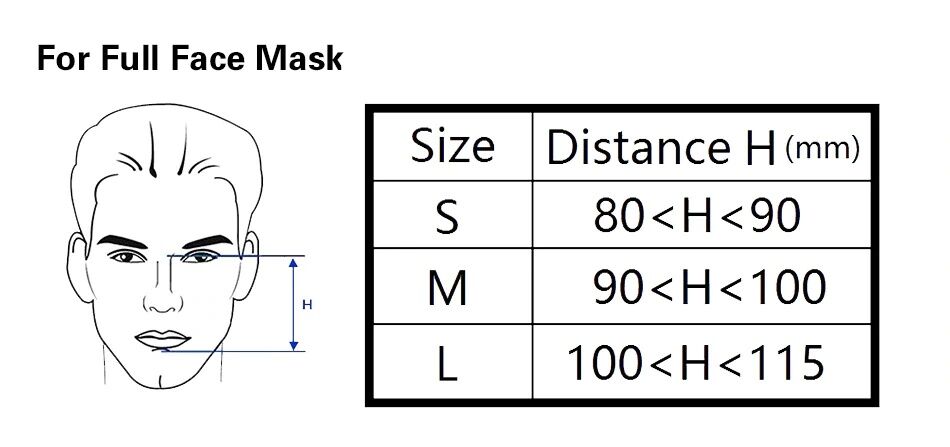

1. The drawing describes the feature of face and the length of the face (H) you need to measure.
2. The mask is available in three different sizes.
3. Choose the appropriate size according to the table provided.
(S) Small = 2.91 ~ 3.39 in
(M) Medium = 3.43 ~ 3.86 in
(L) Large = 3.90 ~ 4.33 in
Tip: If your measurement falls between two sizes, we recommend choosing the larger size. Mask fit may vary depending on face shape and personal preference.
Specifications
Product Name | VentMed DreamSleep BiPAP Machine ST25 DS7 |
Material | ABS+plastic |
Color | Silvery-grey |
Work mode | CPAP, AUTO, S, T, ST |
Sound | <28db |
Data storage | SD card |
Screen | 2.8 inch color screen |
Pressure Range | 4-25cmH2O |
Power supply | Input100-240V.50-60Hz, 1-2A; Output+24V,2.5V |
Over-temperature protection | Stop working automatically, buzzle ring 4 times |
Ramp item | 0-60min, 1 min/step |
Auto ON/OFF | Yes |
EPR | Yes, 0-3 level |
Auto-Altitude | Yes |
Leak compensation | Yes |
Awake detection | Yes |
Breath Event detection | Yes |
| Humidifier | Heated Humidifier, 0-5 level |
| Alarm | Mask off, suffocation, pressure abnormality, tubing abnormolity, power failture. |
| Dimensions | 29L*15W*10H(machine); 38.5L*36.5W*16H(carton) |
| Weight(With humidifier) | 1.8KG(Net weight);4KG(Gross weight) |
| Work for | OSA /CSA /MSA/ Hypopnea/ COPD |
