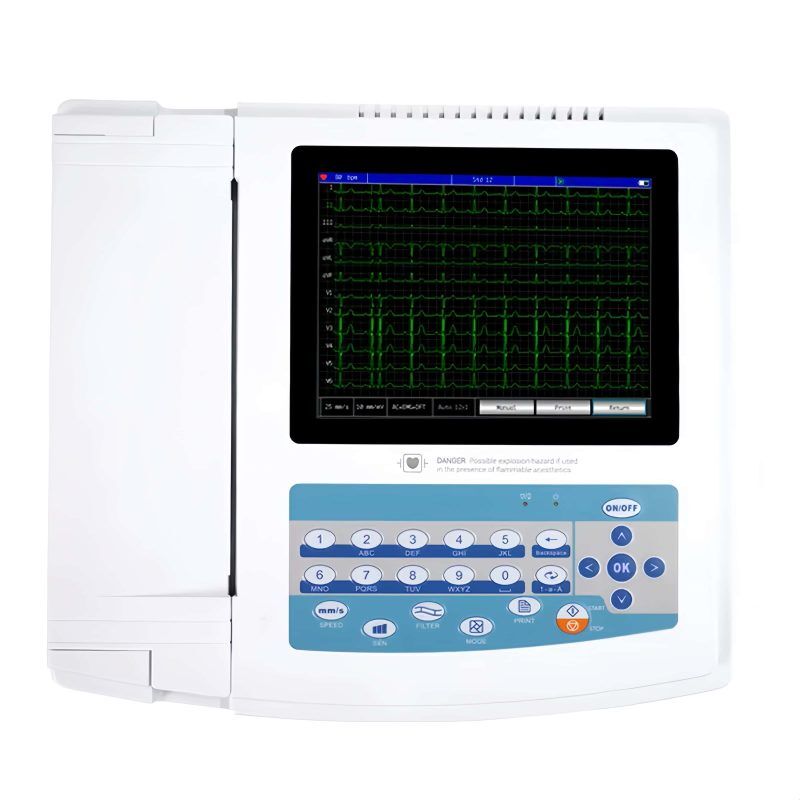

The ECG1200G is a professional 12-lead electrocardiograph designed for efficient cardiac signal acquisition and analysis. It simultaneously collects 12-lead ECG signals and generates clear waveform printouts via a built-in thermal printing system. The device supports both automatic and manual recording modes, enabling real-time waveform display and automated parameter measurement with preliminary diagnostic assistance.
ECG1200G Features
Synchronous 12-Lead ECG Acquisition:
Features 24-bit sampling accuracy for high-fidelity waveform capture. Advanced digital filtering (power frequency, baseline, and EMG filters) ensures signal clarity and stability.
Comprehensive Display Interface:
Simultaneously shows 3/6/12-lead ECG waveforms alongside key parameters (print mode, sensitivity, paper speed, filter status) on a single screen for efficient comparative diagnosis.
Flexible Printing Options:
Supports multiple print formats including Auto 12×1, 6×2+1 (with rhythm lead), 3×4+2, and rhythm-only modes (12/10/8/6 leads). Allows printing of P-R interval trend charts and histograms, with adjustable waveform length and timestamp functionality to meet diverse clinical needs.
Adjustable Paper Speeds:
Offers six speed settings: 5, 6.25, 10, 12.5, 25, and 50 mm/s.
Automated ECG Analysis:
Provides full-parameter measurements and preliminary diagnostic interpretations for key metrics (HR, intervals, axes, amplitudes, etc.), streamlining workflow and reducing diagnostic burden.
Integrated Data Management:
Includes high-capacity internal memory for efficient case review and statistical analysis.
Multilingual Support:
User interface and reports available in multiple languages, including Chinese, English, Turkish, Portuguese, German, Russian, and Kazakh.
Extended Battery Operation:
Provides up to 10 hours of standby and over 3 hours of continuous printing on a single charge, ideal for mobile healthcare scenarios.
Specifications
- Working environment
Temperature: 5℃~40℃ - Relative humidity: 25%~95%(non-condensing)
- Atmospheric pressure: 700 hPa~1060 hPa
- Transport and storage environment
Temperature: -20 ℃～+55 ℃ - Relative humidity: ≤95%
Atmospheric pressure: 500 hPa~1060 hPa - Dimension: 340mm(L) × 320mm(W) × 85mm(H)
- Net weight: 3.2Kg
What's Included
- ECG1200G ECG Machine 1pc
- Lead cable 1pc
- Limb electrode 1pc
- Chest electrode 1pc
- Thermal recording paper 1pc
- Power cord 1pc
- Earth wire 1pc
- User manual 1pc
