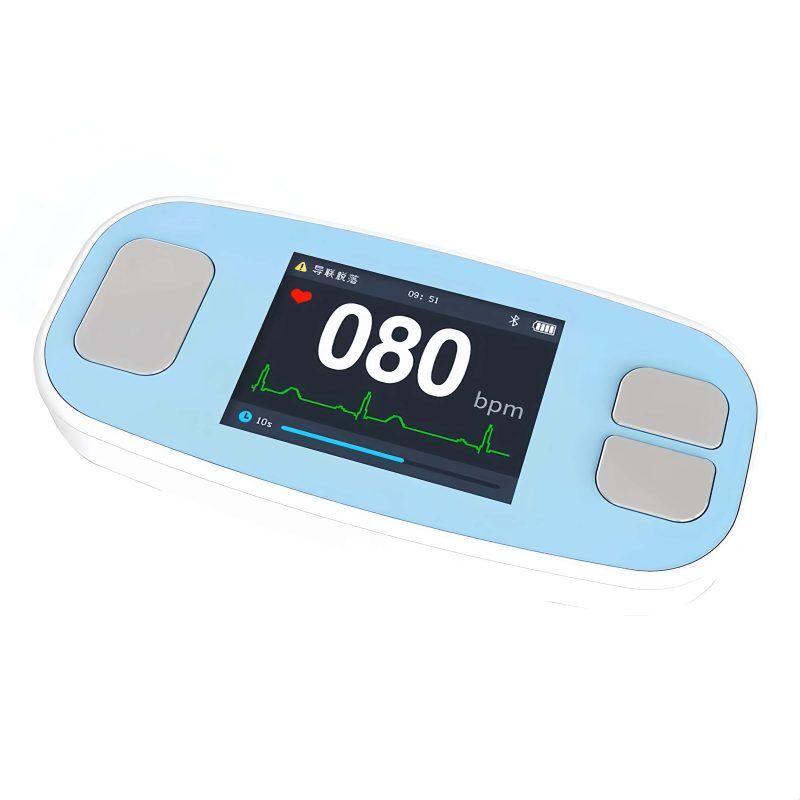

The PM20 Portable ECG Monitor is a smart, user-friendly device designed for home and individual use, aiding in the early prevention of cardiovascular diseases. It features a 2.4″ color TFT-LCD, quick finger-touch ECG checks, and supports six-lead electrocardiograms. With Bluetooth transmission, it enables remote health management via a mobile app, automatic measurements, data storage on a CLOUD platform, and instant doctor advice. The rechargeable lithium battery supports up to 500 recordings, and historical data can be reviewed, printed, or analyzed dynamically.
Features & Benefits
2.4-Inch Color TFT-LCD Display:Provides a clear and intuitive interface for real-time ECG waveform visualization.
One-Touch ECG Measurement:Acquires a reading instantly upon finger contact, supporting both single-lead and six-lead electrocardiogram modes for ultimate convenience.
Imelligent Analysis:Delivers accurate preliminary analysis conclusions immediately after each measurement.
Long-Lasting Battery:Features a built-in rechargeable lithium battery that supports the recording of up to 500 ECG cases on a full charge.
Bluetooth Connectivity:Enables seamless wireless data transfer to the companion mobile application.
Cloud Data Management:ECG data is automatically saved to a secure cloud platform for permanent storage, facilitating easy access, review, and in-depth analysis from anywhere.
Dynamic Historical Review:Allows users to dynamically scroll through and replay historical ECG recordings for a vivid and detailed review.
On-Demand Printing:Historical data and reports can be printed at any time, providing tangible records for clinical diagnosis and physician consultation.
Specifications
- Lead: Standard 6 leads,I/ II /III/aVR/aVL/aVF
- Calibration voltage：1mV±5%
- Standard sensitivity：10mm/mV±5%
- Amplitude frequency characteristic： standard: 10Hz，1Hz～20Hz；(+0.4dB，-3dB)
- Noise level：≤30μV
- CMRR：≥60dB
- Scanning speed：25mm/s±5%
- Sampling rate：250 dots/s
- HR measurement range：30bpm～300bpm, error： ±1bpm or 1%
- Type of protection against electric shock: Internal power device
- Degree of protection against electric shock: Type BF applied part
- Degree of waterproof: IP22
- Dimension: 122mm(L)×56mm(W)×17mm(H)
- Weight: 84g
What's Included
- PM20 Porable ECG monitor (1pc)
- Power cord (1pc)
- User manual (1pc)
