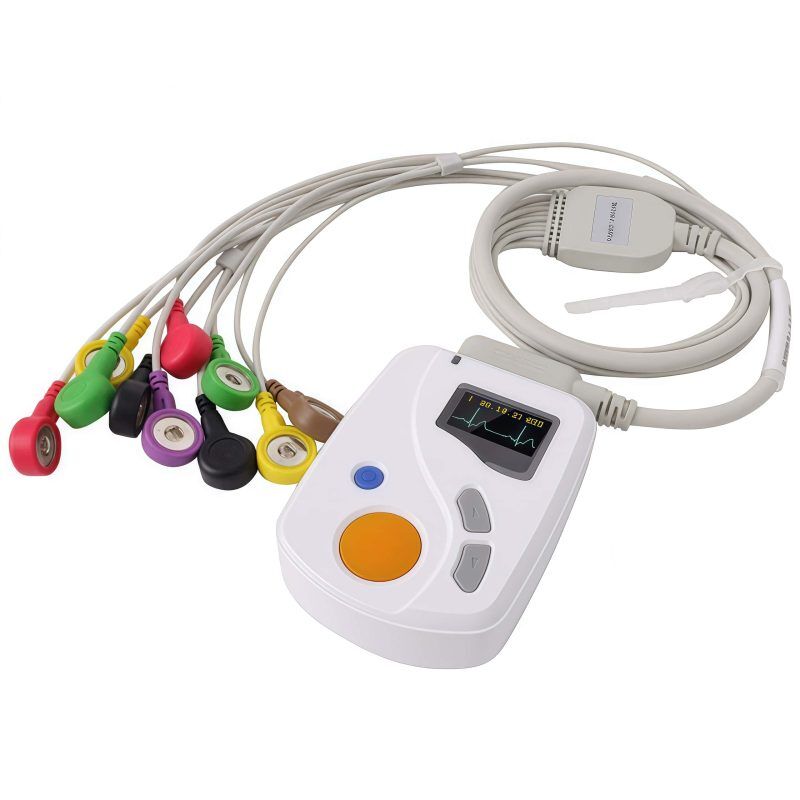

The TLC6000 Dynamic ECG System incorporates an international standard 12-lead configuration. It is capable of continuous ECG waveform recording for up to 48 hours with a high-capacity battery. The acquired data is then analyzed by sophisticated PC software, making it suitable for use in hospitals, clinics, and community healthcare settings.
Features & Benefits
International Standard 12-Lead System:Supports up to 24 hours (standard) or 48 hours (extended) of continuous ECG recording.
Synchronized 12-Lead Analysis:Allows any channel to be selected as the primary analysis channel, ensuring accurate and undistorted QRS complex detection across all leads.
Comprehensive Waveform Library:Includes over 10 predefined diagnostic templates (e.g., APC, VPC, Long Interval, Atrial Fibrillation) and supports user-defined modules for identifying a wide range of pathological waveforms.
Advanced Atrial Fibrillation Analysis:Offers flexible whole-recording or segmented analysis in both automatic and manual modes for superior accuracy in AFib assessment.
Pacemaker Analysis:A powerful function capable of analyzing all common pacemaker types (e.g., AAI, VVI, DDD).
Rapid Review Function:Enables quick browsing of ECG data from any time period in either single-lead or full 12-lead display.
Heart Rate Variability (HRV):Provides HRV analysis for 5-minute, 1-hour, and full 24-hour periods.
One-Key Printing:Allows for convenient and fast generation of reports.
Risk Stratification Tools:
Heart Rate Turbulence (HRT):Aids in predicting mortality risk post-myocardial infarction.
T-Wave Alternans (TWA):An important index for assessing the risk of malignant arrhythmias and sudden cardiac death.
Advanced Diagnostic Modules:The analysis report is enhanced with additional parameters, including QT Dispersion (QTD), Vector Cardiogram (VCG), Ventricular Late Potentials (VLP), and Time Vector Cardiogram (TVCG).
Note: Product specifications may vary by region. Please contact us for detailed functionality available in your market.
What's Included
1. TLC6000 ECG Machine (1 unit)
2. Lead cable (1 set)
3. ECG electrode (1 bag)
4. USB cable(1)
5. PC-software(1)
6. Carry Bag(1)
7. User manual(1)
