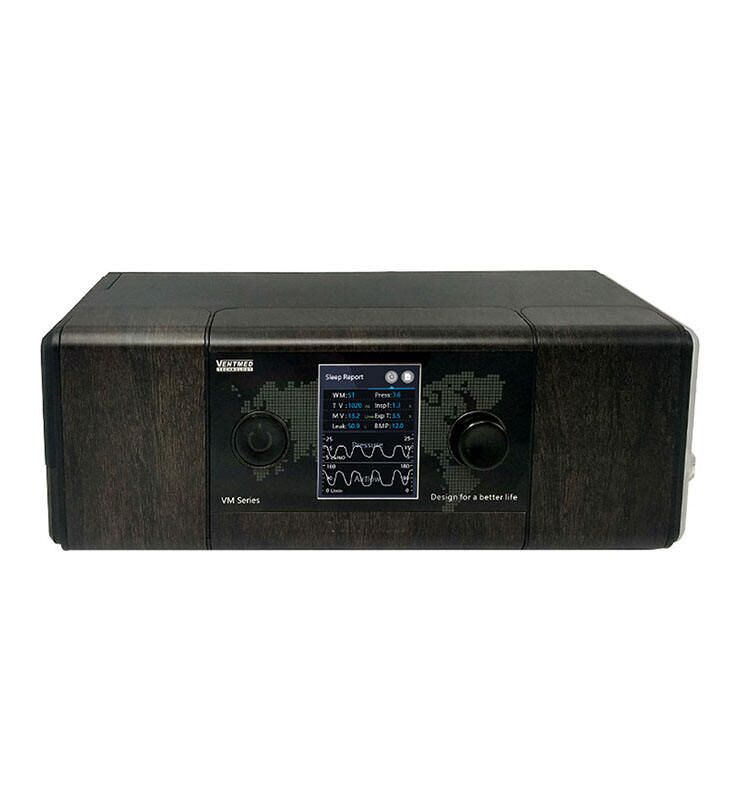

VentMed™ BiPAP VM8
The VM8 BiPAP machine comes with a host of comfort features, including Ti-control, easy breathe technology, a heated humidification system, and EPR(expiratory pressure relief).
It comes with large shuttle buttons and an intuitively designed screen capable of letting you know everything from therapy to data to the quality of your mask seal.
Ideal for OSA
Ideal for treating patients with sleep apnea and respiratory insufficiency, like OSA (Obstructive Sleep Apnea), CSA (Central Sleep Apnea), COPD, OHS etc.
APCV for Optimum Pressure
intelligently analyze the changes in the user’s breathing patterns, giving the user optimal levels of air pressure on a breath by breath basis.
Comfort Sleep Therapy
RAMP, Expiratory relief, heated Humidification system help to make your therapy comfortable and allows you to sleep undisturbed.
High Pressure Level
Range of 4-30 cm H20. The elevated pressure capabilities are ideal for users with severe forms of sleep apnea, who generally require a high-pressure setting.
How Can A VM8 BiPAP Help You?
Don’t risk your life if you have a serious condition that affects your lungs. The most severe conditions require the best treatments. The VentMed BiPAP Machine VM8 is a highly reliable machine that can treat the following conditions.
Advanced Event Detection
Built in device intelligence so that you can make the most informed decisions possible. VentMed BPAP Machine VM8 can identify and analyze different types of respiratory events that help you determine appropriate clinical management of obstructive sleep apnea (OSA).
All events can now be verified by looking at detailed user flow waveform data captured by the device.
Monitored Respiratory Events
- OAI (Obstructive Apnea Index)
- AHI (Apnea–Hypopnea Index)
- PB (Periodic Breathing)
- FL (Flow Limitation)
- CAI (Central Apnea Index)
- HI (Hypopnea Index)
- SNI (Snore Index)
- RERA (Respiratory Effort Related Arousal)

Superior Tech. Superior Features

Expiratory Pressure Relief
The VM8 BPAP automatically sets EPR (Expiratory Pressure Relief) function so you may find it easier to breathe out. This can help you get used to therapy.
You can set the expiratory pressure relief Level to off (0) or between 1 and 3, where 1 is the lowest expiratory pressure relief and 3 is the highest setting.
APCV for Optimum Pressure
APCV (Assistant Pressure Control Volume) function makes the device auto adjust inspiratory positive airway pressure (IPAP) and expiratory positive airway pressure (EPAP) for better efficiency and comfort. Meanwhile, the auto bi-level machine can well maintain a target tidal volume the user needs.


ST Mode & Backup Rate (BUR)
A BPM value (Breaths per Minute) can be set as a backup rate in ST Mode. If the user’s spontaneous respiratory rate falls below that value, the device will add pressure to prompt him/her to breathe.
With the machine intervening in the breathing, it can help the user inhale and exhale more easily during challenging conditions, lowering respiratory muscle workload. It can also get the user more oxygen and reduce CO2 in the user’s bloodstream.
VM8 BiPAP - More Features To Know
Auto ON / OFF
Designed to make the device start automatically in a while after you wear mask, and stop the device work automatically in 10 seconds after you take mask away.
The Auto ON/OFF function can be turned off on the menu.
Smart Ramp Settings
It lets the sleep apnea therapy start from a low and pleasant pressure level when the user is still awake. Then the air pressure is gradually ramped up to the correct level and the user can easily fall asleep without even noticing the increment.
Sleep Tracking
It comes with a TF card that will allow you to keep detailed data about your sleep disorder. The new TF card will allow you to store your sleep apnea information, which will enable you to get therapy support from your doctor, and compile compliance reports.
Alarm Setting
Designed to alarm when there is leakage. Can set as ON or OFF.
Whisper-Quiet
It is less than 26 decibels (dB), making it quieter than a whisper and comparable to leaves rustling.
FAQs
Product Name | BIPAP VM-8 |
Material | ABS+plastic |
Color | Black |
Work mode | CPAP,Auto,Auto S, S,T,ST, APCV |
Sound | <28db |
Data storage | TF card |
Screen | 2.8 inch color |
Pressure Range | 4-30cmH2O |
Power supply | Input100-240V.50-60Hz,1-2A; Output+24V,2.5V |
Over-temperature protection | Stop working automatically, buzzle ring 4 times |
Ramp item | 0-60min adjustable 1 min/step |
Auto ON/OFF | Yes |
EPR | Yes,0-3 level |
Auto-Altitude | Yes |
Leak compensation | Yes |
Awake detection | Yes |
Breath Event detection | Yes |
Auto pressure titration | Yes |
Water Capacity | 200ML max |
Humidifier | Heated Humidifier,0-5 level |
Mask /power Off Alarm | Yes |
Dimensions | 29L*15W*10H(machine); 38.5L*36.5W*16H(carton) |
Weight(With humidifier) | 1.8KG(Net weight);4KG(Gross weight) |
work for | OSA /CSA /MSA/ Hypopnea/ COPD |
VM-8 BiPAP mahcine with integrated heated humidifier, water tank, power lead, travel bag, english user manual, 5*air filter, TF Card, Face mask.
You will know that therapy is on when the air fan icon is rotated. The current treatment pressure is shown in white words.
During ramp time the pressure is gradually increasing and you will see a blue triangle icon on the screen once the prescribed pressure is reached.
The screen will go black automatically after a short period of time. You can press any button to turn it back on.
The device has many high-sensitivity sensors, and it alarms with ‘beeping’ sound when it detects air-leakage. Please inspect the mask and tube carefully to make sure they are fitted correctly and not leaking. You can read air-leakage data on the screen, if data is over 30, it means the air-leakage is occurring.
Yes sure. The device has two therapy modes – CPAP and Auo CPAP / APAP.
In work mode CPAP, press shuttle button to highlight Pressure. Rotate shuttle button to adjust working pressure. You can set pressure 4-20 cmH2O for CPAP mode.
Clean the device weekly as described. Refer to the mask user guide for detailed instructions on cleaning your mask.
- Wash the water tank and air tubing in warm water using mild detergent. Or sanitize them by using a CPAP cleaner & sanitizer. Do not wash in a dishwasher or washing machine.
- Rinse the water tank and air tubing thoroughly and allow to dry out of direct sunlight and/or heat.
- Wipe the exterior of the device with a dry cloth.
You can take this device with you wherever you go. Just keep the following in mind:
- Empty the water tank and put it into the device.
- Use the travel bag provided to prevent damage to the device.
Do not use the device with water in the water tank on a plane due to the risk of inhalation of water during turbulence.
(it feels like getting too much air
If you are feeling too much air at the beginning of therapy, the Ramp may be turned off. You can turn on the Ramp time and the pressure will increase gradually at a pleased speed.
It feels like I am not getting enough air. Ramp may be in progress. Just wait for air pressure to build up or turn Ramp Time off.
